What is a Steel Flange?

A steel flange is a fundamental component used to connect pipes, valves, pumps, and other equipment to form a complete industrial piping system. Typically forged or cast, these flanges are designed to be bolted together with a gasket in between to create a secure, leak-proof seal.

They are available in various types, like weld neck, slip-on, and blind flanges, and different materials, such as carbon steel (A105) or stainless steel (304/316). Selecting the correct flange requires matching its dimensions, pressure rating (e.g., 150#, 300#), and technical specifications to your project's requirements.

An expert team is available at Texas Flange to help you with any questions you may have and all your sourcing needs.

Close-up of various steel flanges arranged on a workshop table

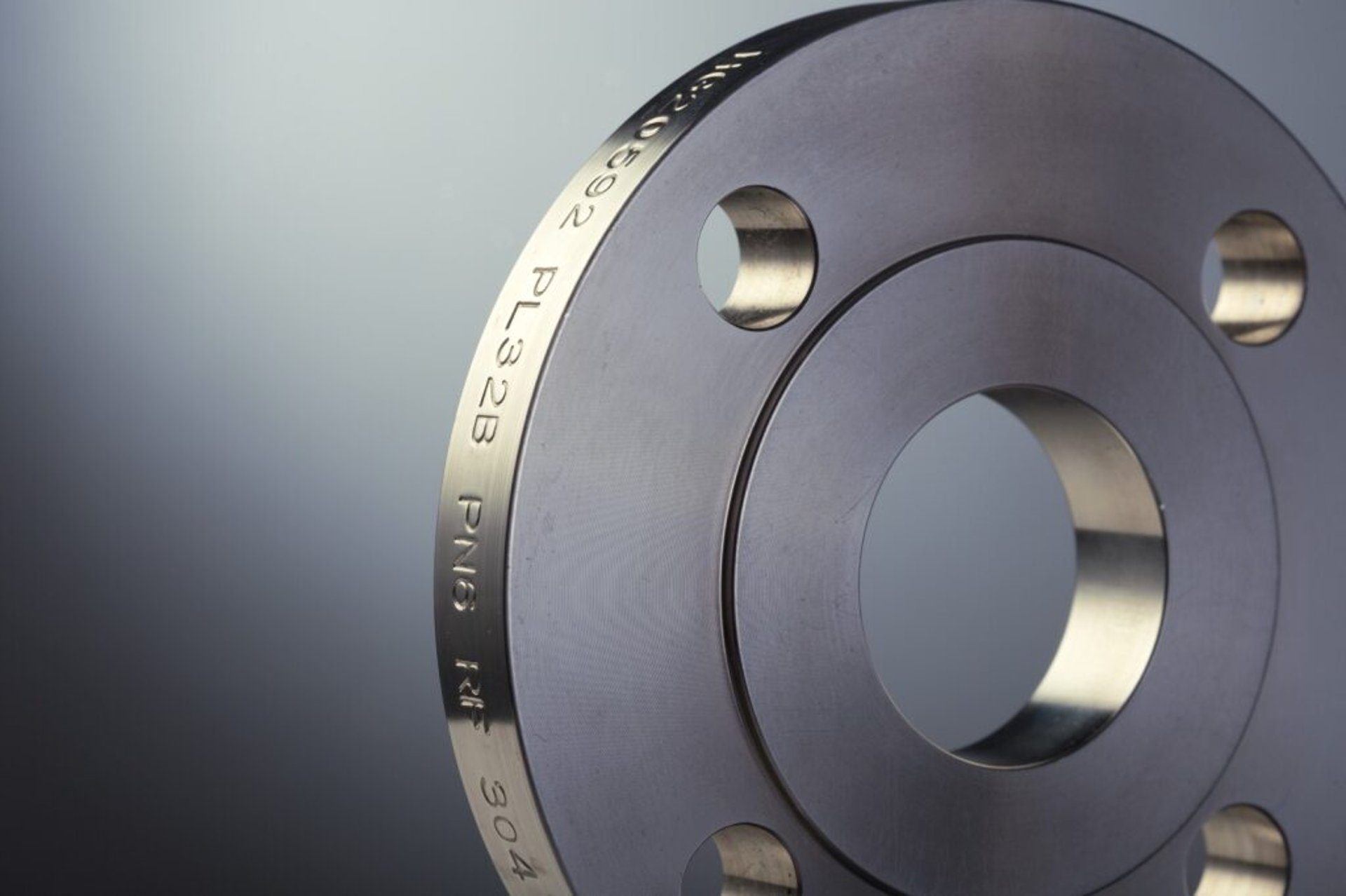

Steel flanges closeup showing bolt holes and machined faces

Why Choose a Steel Flange?

Steel flanges are the industry's most trusted and widely specified material due to their exceptional strength, reliability, and cost-effectiveness. Ideal for most standard industrial applications, carbon steel provides robust performance in high-pressure and high-temperature environments.

You can source all types, from weld neck and slip-on flanges to blind flanges, in common specifications like A105. This material is the workhorse for industries like oil and gas, power generation, and manufacturing, and it is available in all standard dimensions and pressure ratings (like 150# or 300#) to meet your project's requirements.

Which Steel Is Most Popular?

The most widely used material grade out there is A105 forged carbon steel. It covers a broad size range - 1/2" to 24" under ASME B16.5, 26" to 60" under ASME B16.47, and all the way up to 96" under B16.1. That size flexibility, combined with a working range of ambient up to 1,000°F and pressures anywhere from 20 to 6,170 psi, makes carbon steel flanges a practical fit for a wide variety of industrial applications. They also happen to be one of the more cost-effective options on the market, which never hurts, and it is the industry standard replacement for the previously designed cast iron specification. Most A105 flanges come painted from the factory, but you can also opt for galvanization.

Why Choose High Yield Carbon Steel Flanges?

When we talk about yield strength, we're really just talking about how much stress a piece of steel can take before it starts to permanently deform. That threshold is known as the "yield point" and is essentially the maximum load you want to put on the material. The good news about yielding is that it's a gradual process, so deformation is usually visible before anything catastrophic happens. High yield carbon steel flanges are heat treated to push that deformation threshold higher, which makes them the go-to choice for high pressure and high temperature applications: typically Class 600# and above. They also carry a slightly higher carbon content than mild steel, which makes them tougher and less brittle overall. This also has an effect on weldability, so make sure to take that into consideration if you are a fabricator. What really sets these flanges apart in demanding service conditions is their resistance to wear. When you need something that's going to last in a tough environment, that durability is what matters most. These flanges fall under specifications A694 and MSS-SP44, which cover the full range of grades from F42 to F70, with F52 and F65 being the most common choices.

Common Types of Steel Flanges

Weld Neck Flange

Recognizable by its long, tapered hub. The hub is welded directly to the pipe, providing a very strong, reinforced connection ideal for high-pressure systems and extreme temperatures.

Slip-On Flange

Designed to slip over the end of the pipe, then welded in two places. Generally easier to install and align than a weld neck, making it a popular choice for lower-pressure applications.

Blind Flange

A solid disc with bolt holes used to seal or "blank off" the end of a pipe, valve, or pressure vessel opening, effectively acting as a cap for the system.

Frequently Asked Questions

What is a steel flange?

A flange is a forged or cast steel ring designed to connect sections of pipe, or to join a pipe to a valve, pump, or other piece of equipment. Flanges are bolted together with a gasket in between to create a secure, leak-proof seal that allows for easier system maintenance.

Why choose a steel flange?

Steel flanges are the industry standard because they offer the best combination of strength, durability, and cost-effectiveness. They are strong enough to handle high-pressure and high-temperature requirements, making them the go-to material for critical applications in oil and gas, manufacturing, and power generation. As the most common specification (like A105 for carbon steel), they are easy to source in all types (like weld neck or slip-on) and dimensions.

How do flanges connect pipes?

Flanges create a strong, bolted joint. A flange is typically welded or screwed onto the end of each pipe. To make the connection, a gasket (a ring of softer, compressible material) is placed between the two flat flange faces. Bolts are then inserted through the matching bolt holes and tightened with nuts. This action compresses the gasket, creating a tight, leak-proof seal that securely fastens the two pipe sections together.

What types of steel flange are there?

The most common types include Weld Neck flanges, which are ideal for high-pressure and high-temperature applications; Slip-On flanges, which are easier to align and install; and Blind flanges, which are used to seal the end of a piping system.

Where are steel flanges used?

Steel flanges are essential components in virtually all industrial and mechanical piping systems. You'll find them in any industry that transports liquids or gases, especially under high pressure or at high temperatures. Key industries include oil and gas (for pipelines and refineries), petrochemical and chemical processing plants, and power generation facilities. They are also critical for connecting pumps, valves, and equipment in municipal water treatment systems.

How do I choose the right flange?

Consider pipe size, pressure, material compatibility, and application environment for best fit, and call Texas Flange today!
